| Model |

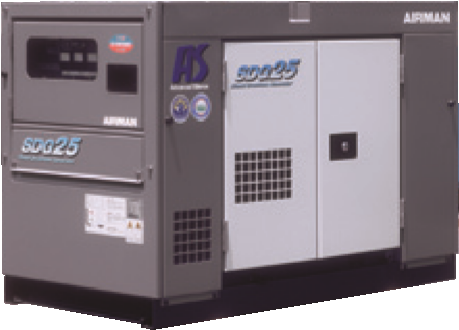

SDG25AS
-3B1 |

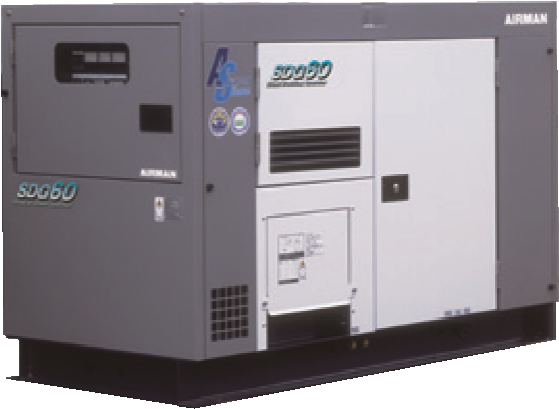

SDG60AS
-3A6 |

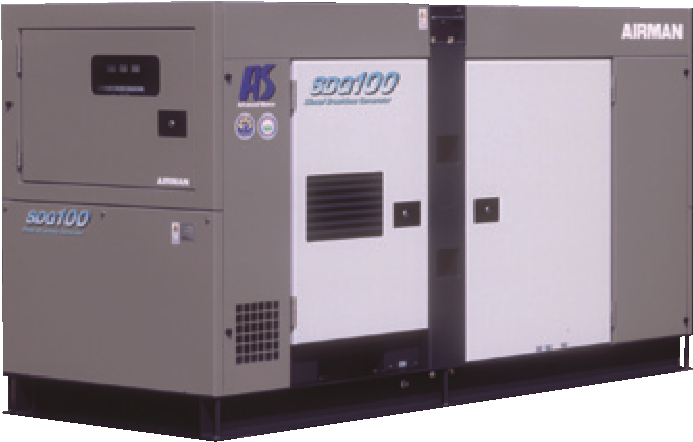

SDG100AS
-3A6 |

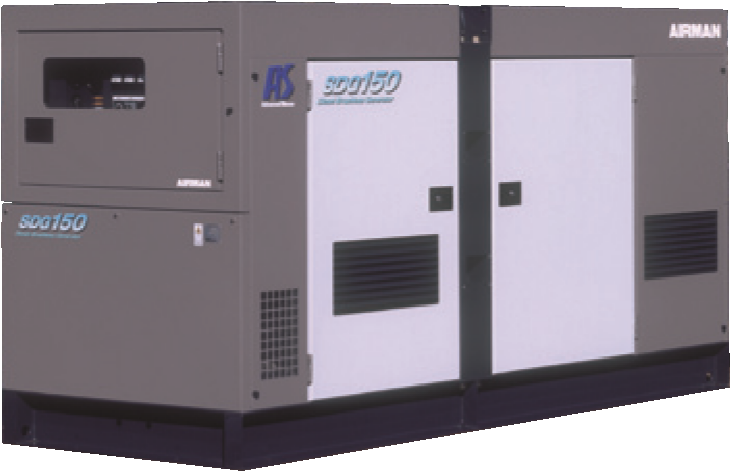

SDG150AS
-3A6 |
|
 |
 |
 |
 |
| Frequency -Hz |
50 |
50 |
50 |
50 |
| Rated Output - KVA |
20 |
50 |
80 |
125 |
| Voltage - V |
50Hz : 200 or 380 or 400 or 415 , 60Hz : 220 or 440(Dual Voltage) |
| Power Factor - % |
80 |
| Class of rating |
Continuous |
| Exciting Method |
Brushless (with A.V.R.) |
| No. of Phase |
3-Phase , 4-Wire |
| |
|
|
|
|
| Make and Model |
Kubota V2403-K3A |
Isuzu BB-4BG1T |
Isuzu DD-6BG1T |
Hino J08C-UD |
| No. of Cylinder |
4 |
4 |
6 |
6 |
| Type(4Cycle,Water-Cooled) |
Swirl Chamber |
Direct Injection, Turbo Charged |
Direct Injection, Turbo charged,Intercooled |
| Total Displacement - L |
2.434 |
4.329 |
6.494 |
7.961 |
| Rated Output - PS(kW) |
26(19.1) |
65(48.1) |
100(73.6) |
160(118) |
| Speed - rpm |
1500 |
1500 |
1500 |
1500 |
| Fuel |
Diesel Fuel Oil |
Diesel Fuel Oil |
Diesel Fuel Oil |
Diesel Fuel Oil |
| Fuel Tank Capacity - L |
80 |
170 |
225 |
265 |
| Fuel Consumption(50/75%Load) - L/hr |
2.9/3.7 |
6.0/8.6 |
10.2/14.5 |
14.7/19.4 |
| Lublicating Oil Capacity - L |
9.5 |
14 |
18 |
24.5 |
| Cooling Water Capacity - L |
9 |
15 |
24 |
22 |
| Battery(Capacity 5hrs) - (Ah) |
80D26R(55) x 1 |
80D26R(55) x 1 |
95D31R(64) x 2 |
95D31R(64) x 2 |
| |
|
|
|
|
| Overall Length -mm |
1570 |
2090 |
2700 |
3200 |
| Overall Width -mm |
800 |
950 |
1140 |
1200 |
| Overall Height -mm |
1090 |
1300 |
1500 |
1630 |
| Net Dry Mass - kg |
730 |
1280 |
1870 |
2590 |
| Operation Mass - kg |
810 |
1440 |
2100 |
2850 |
| |
|
|
|
|
| Sound power level in decibels - dB |
83 |
83 |
84 |
88 |
| Sound Pressure level - dB(A) |
53 |
55 |
54 |
55 |
| |
|
|
|
|
